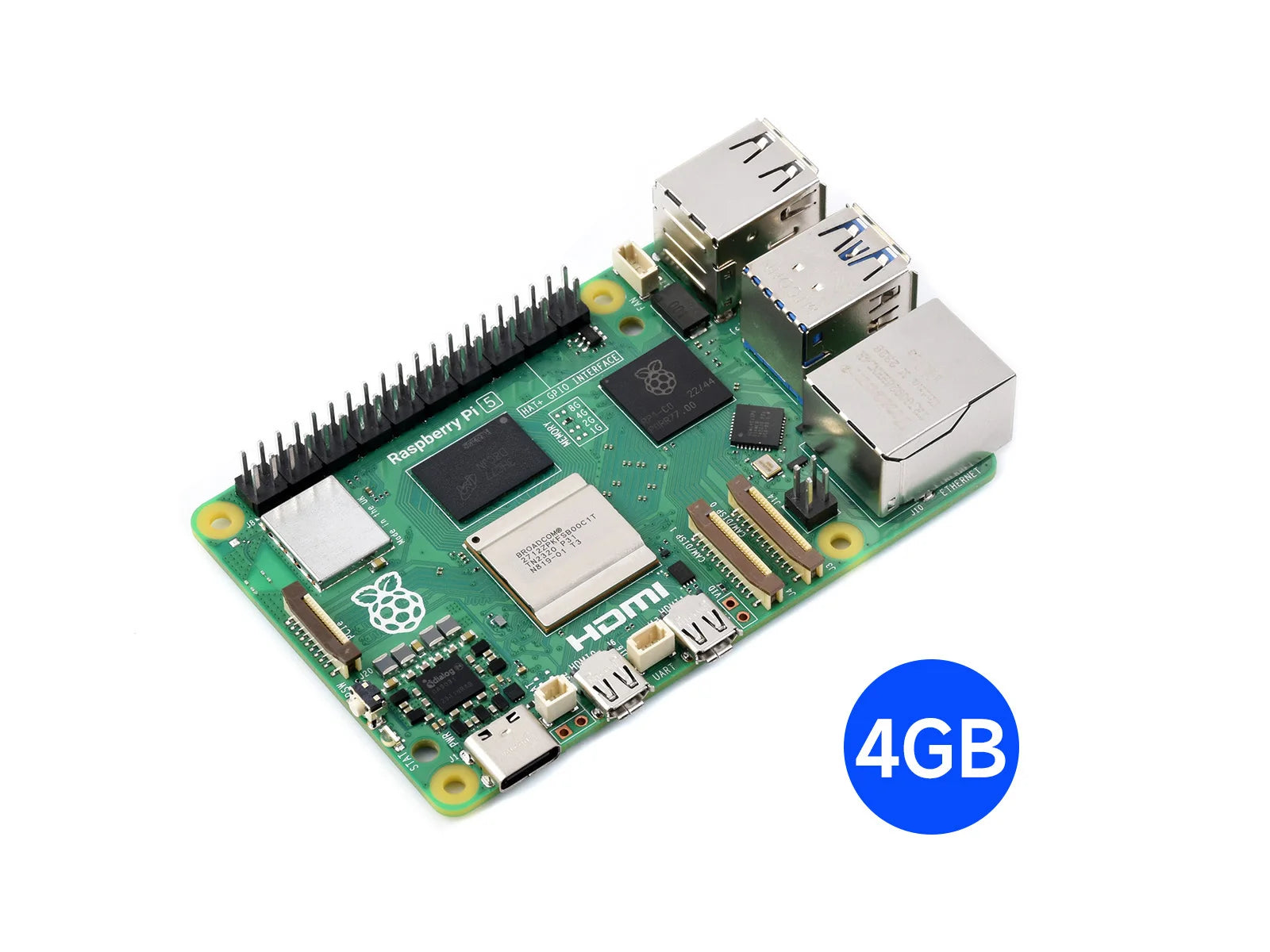

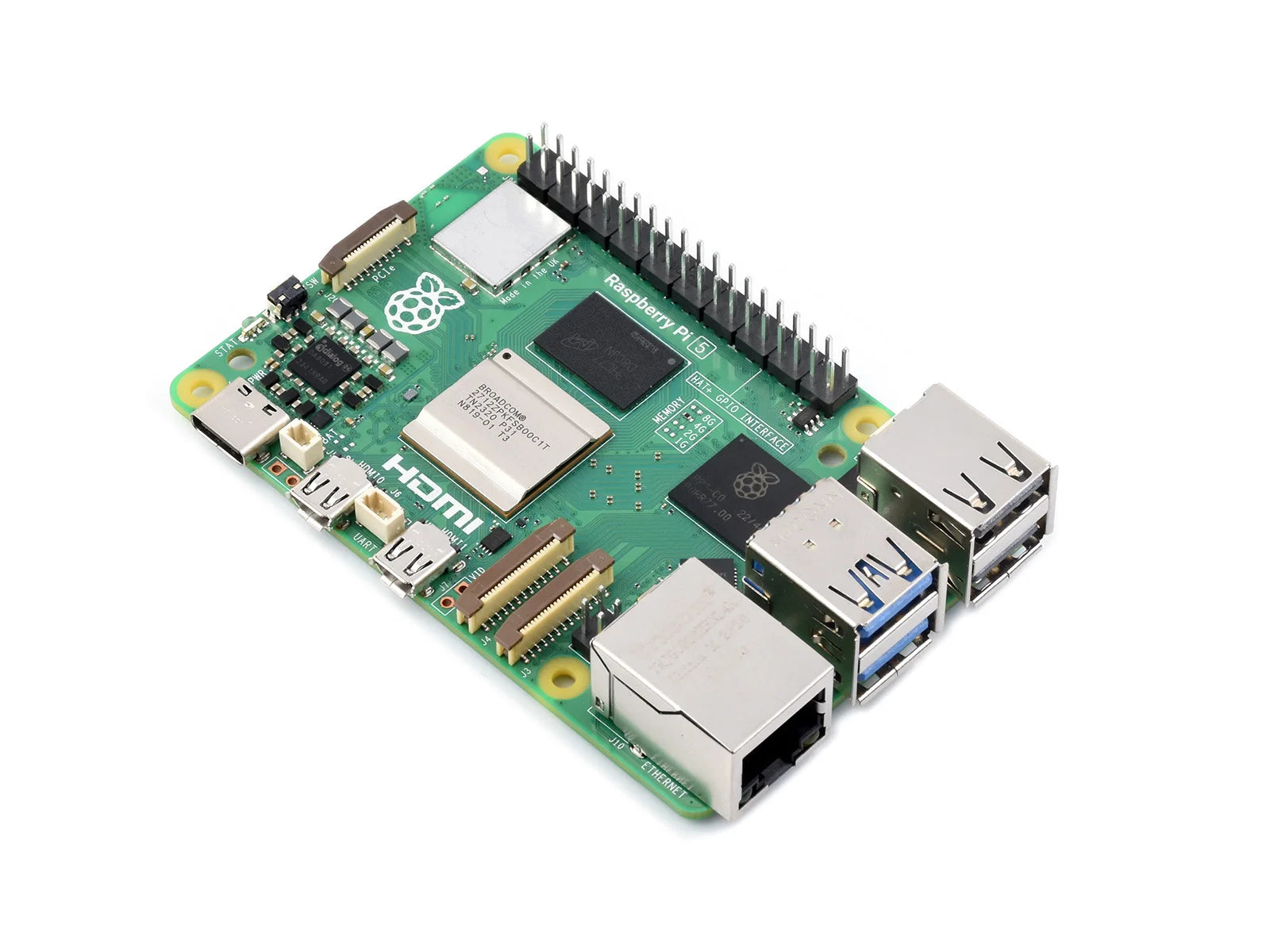

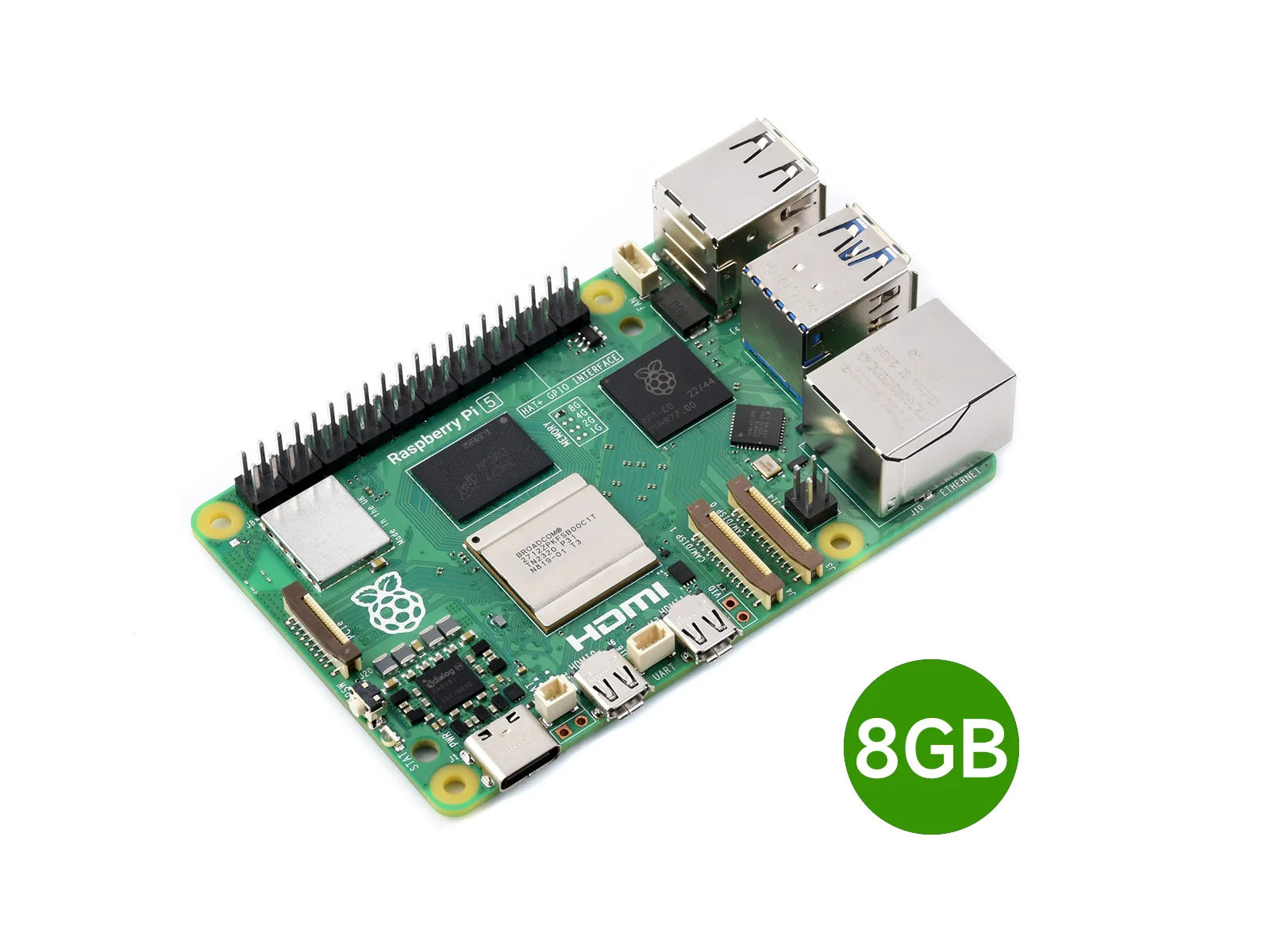

Raspberry Pi 5, Options for 4GB/8GB RAM, BCM2712 processor, 2.4GHz quad-core 64-bit Arm Cortex-A76 CPU Built Using RP1 I/O

$226.88 CAD

~~$0.00 CAD~~ $226.88 CAD

Sale Sold out

SPECIFICATIONS

Brand Name: NONE

CPU: Broadcom BCM2712, quad-core Cortex-A76 (ARM v8) 64-bit SoC, 2.4GHz frequency

Condition: New

High-concerned chemical: None

INTERFACES: 2 x USB 3.0 2 x USB 2.0

OPERATING SYSTEM & DATA STORAGE: TF card slot, with support for high-speed SDR104 mode

Origin: Mainland China

POE: requires separate new PoE+ HAT

POWER INPUT: 5V/5A DC (power via USB-C, support PD)

RAM: Options for 4GB/8GB

RTC: Onboard RTC and RTC battery connector

Type: Module

DESCRIPTION

Raspberry Pi 5, Options For 4GB/8GB RAM, BCM2712 Processor, 2.4GHz Quad-Core 64-Bit Arm Cortex-A76 CPU, Built Using RP1 I/O Controller Designed By Raspberry Pi

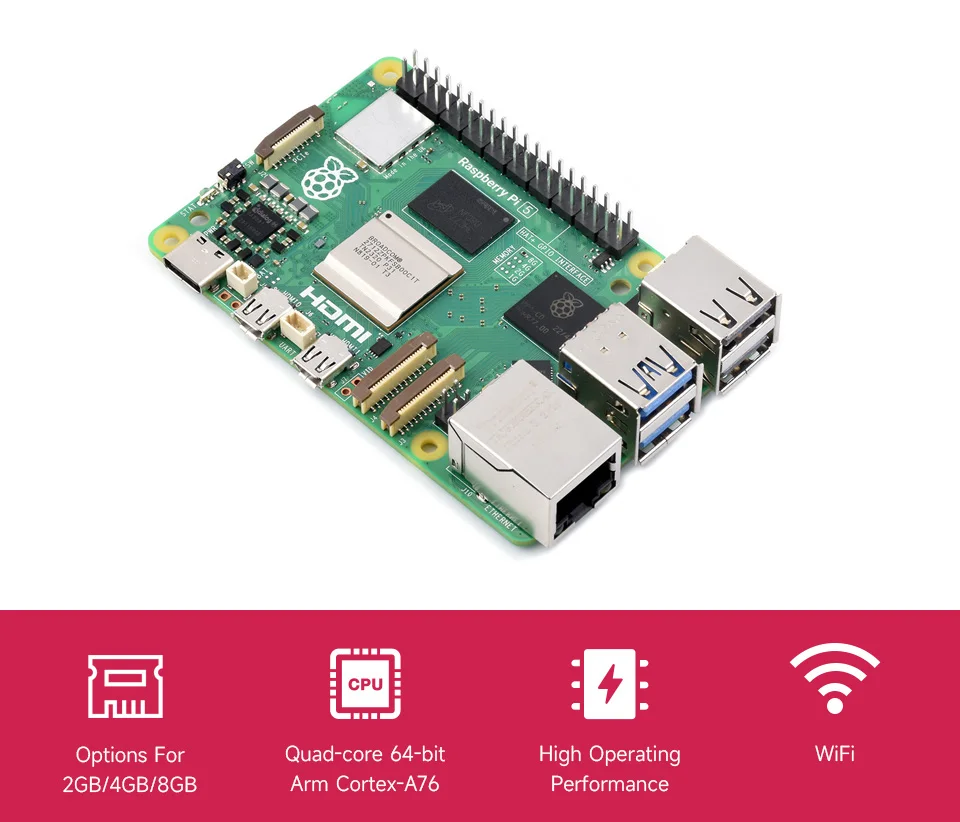

Raspberry Pi 5

The latest generation of Raspberry Pi: the everything computer

Built Using RP1 I/O Controller Designed By Raspberry Pi

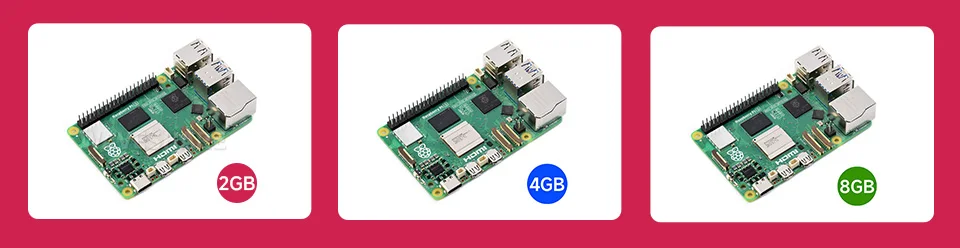

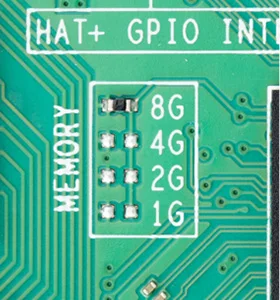

Memory Options

Kit Selection Guide

KIT	PACKAGE CONTENT
PI5 4GB/8GB Starter Kit	Raspberry Pi 5-4GB/8GB + Starter Kit Accessories Pack + Clear Acrylic Case
PI5 4GB/8GB Display Kit A	Raspberry Pi 5-4GB/8GB + Starter Kit Accessories Pack + Display Kit A Accessories Pack
PI5 4GB/8GB Display Kit B	Raspberry Pi 5-4GB/8GB + Starter Kit Accessories Pack + Display Kit B Accessories Pack
PI5 4GB/8GB Dual-Camera Kit A	Raspberry Pi 5-4GB/8GB + Pi5-IMX219-77 Camera (with cable) ×2 + Camera Kit Accessories Pack
PI5 4GB/8GB Dual-Camera Kit B	Raspberry Pi 5-4GB/8GB + Pi5-IMX219-120 Camera (with cable) ×2 + Camera Kit Accessories Pack
PI5 4GB/8GB Dual-Camera Kit C	Raspberry Pi 5-4GB/8GB + IMX219-83 Binocular Camera (with cable) + Camera Kit Accessories Pack
PI5 Starter Acce	Starter Kit Accessories Pack (TF card 64GB, 27W power supply, active cooler, HDMI cable, Ethernet cable, card reader) + Clear Acrylic Case (Raspberry Pi 5 is NOT included)
PI5 Display Acce A	Starter Kit Accessories Pack + Display Kit A Accessories Pack (Raspberry Pi 5 is NOT included)
PI5 Display Acce B	Starter Kit Accessories Pack + Display Kit B Accessories Pack (Raspberry Pi 5 is NOT included)
PI5 Dual-Camera Acce A	Pi5-IMX219-77 Camera (with cable) ×2 + Camera Kit Accessories Pack (Raspberry Pi 5 is NOT included)
PI5 Dual-Camera Acce B	Pi5-IMX219-120 Camera (with cable) ×2 + Camera Kit Accessories Pack (Raspberry Pi 5 is NOT included)
PI5 Dual-Camera Acce C	IMX219-83 Binocular Camera (with cable) + Camera Kit Accessories Pack (Raspberry Pi 5 is NOT included)

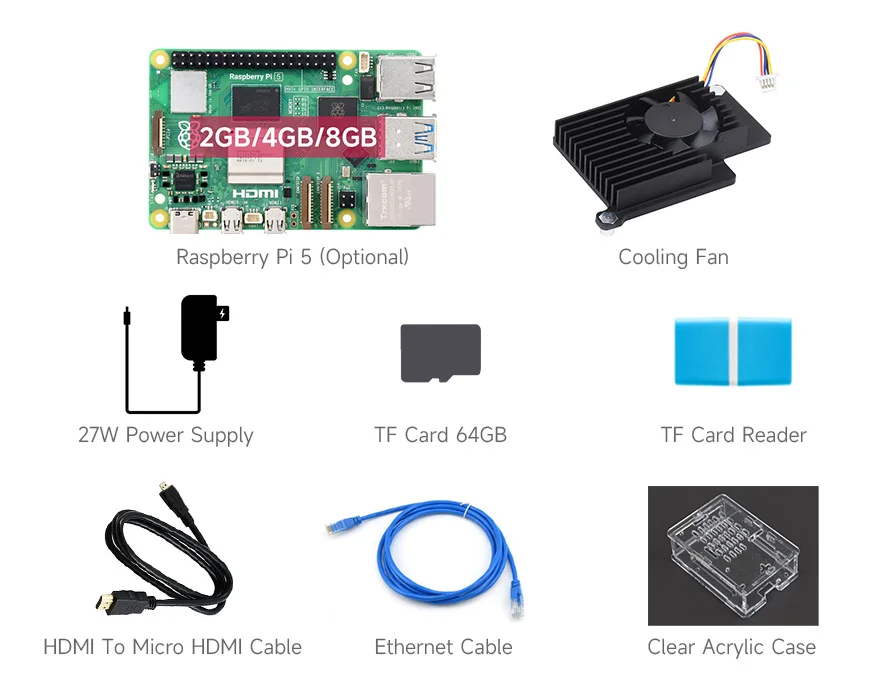

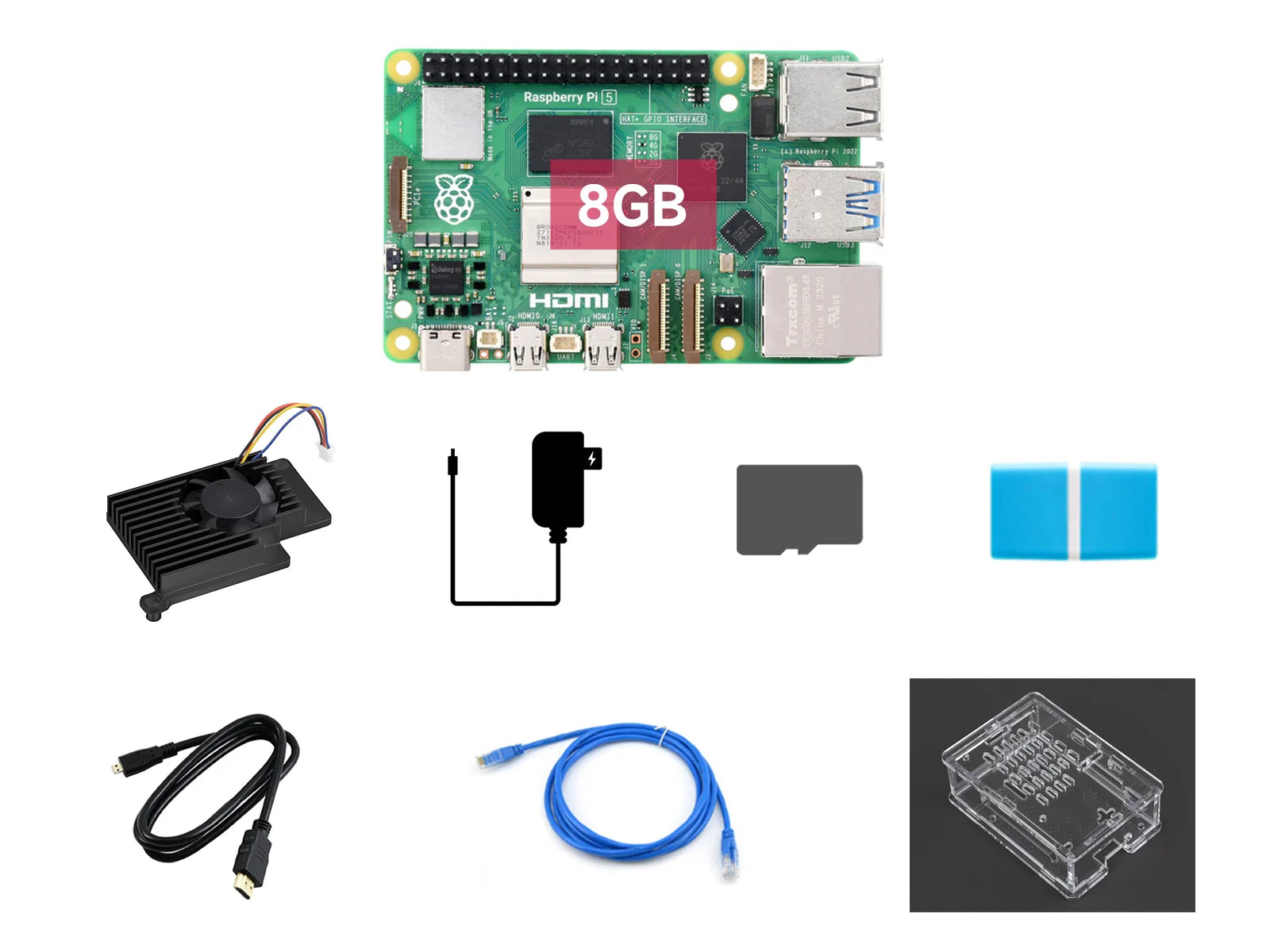

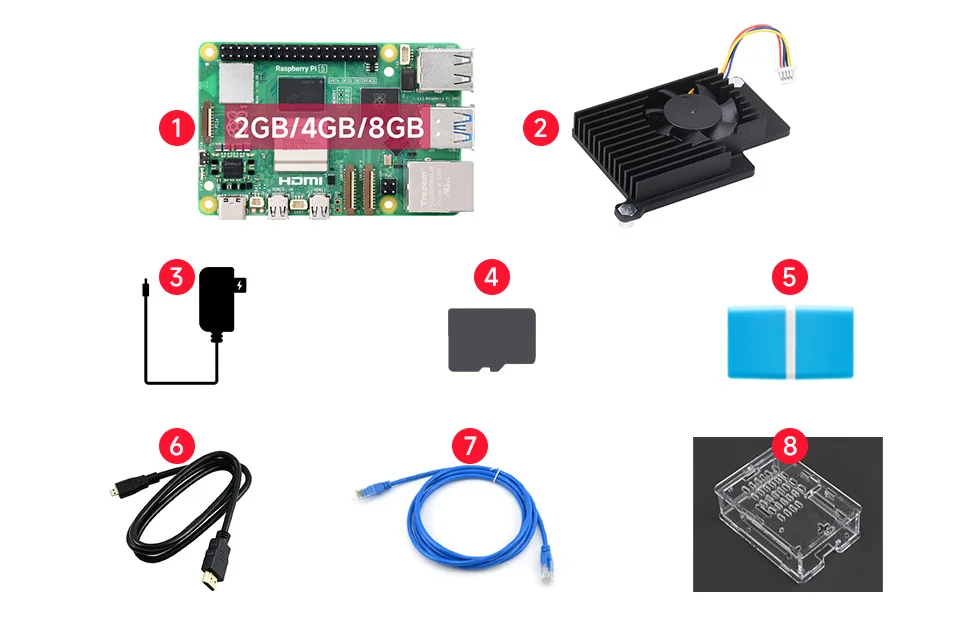

PI5 Starter Kit

This kit includes Raspberry Pi 5 4GB/8GB (optional), equipped with an active cooler, 27W power supply, 64GB TF card, card reader, HDMI to Micro HDMI cable, Ethernet cable and clear Acrylic case, to get users started with Raspberry Pi 5 quickly.

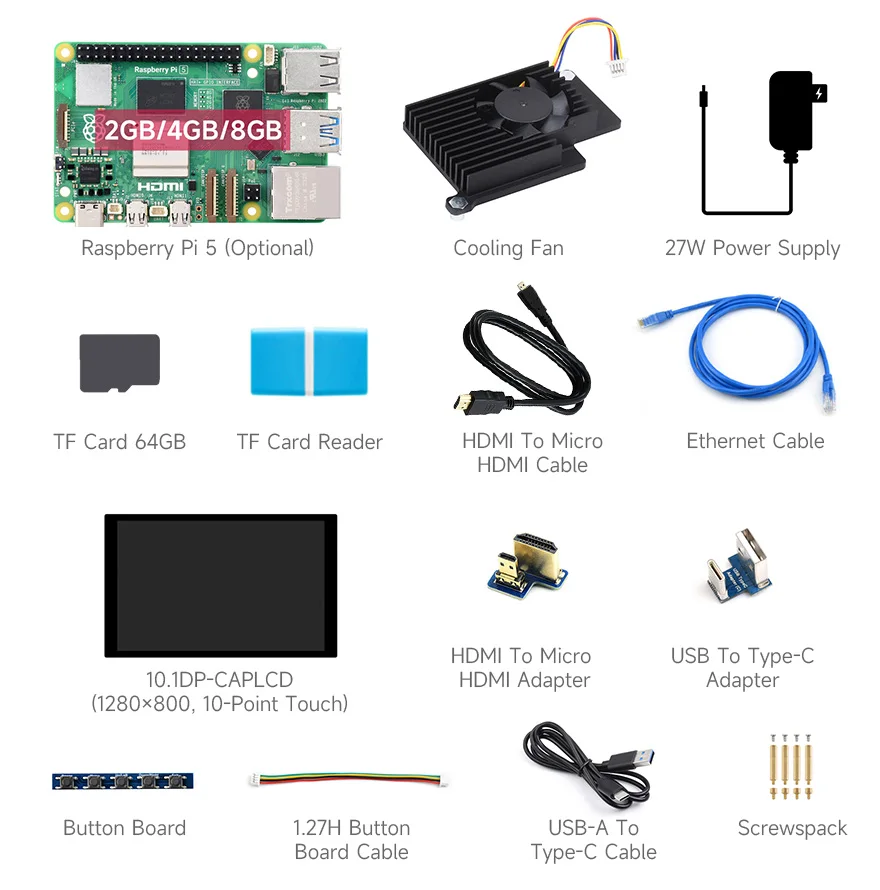

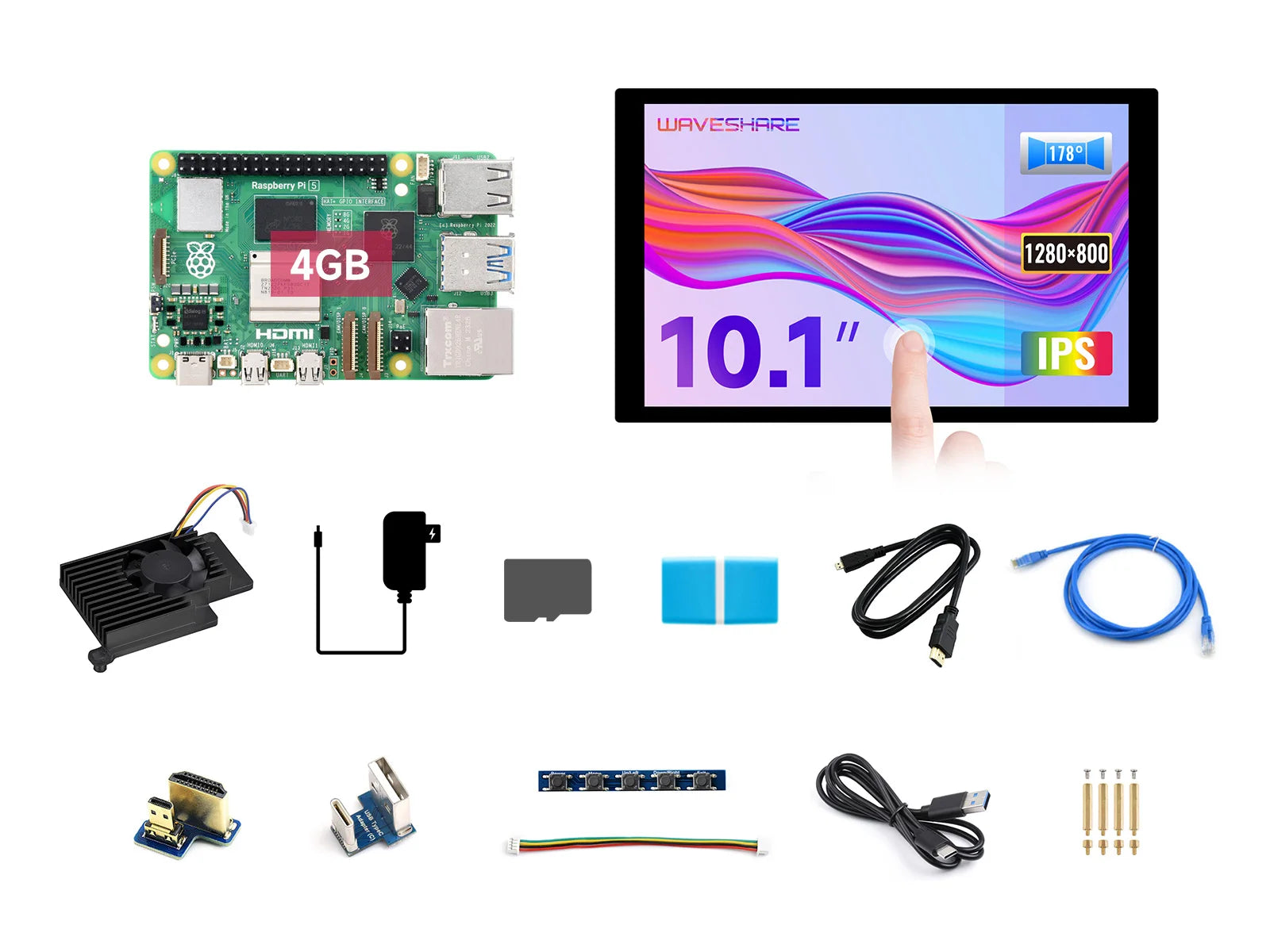

PI5 Display Kit A

This kit includes Raspberry Pi 5 4GB/8GB (optional), on the basis of the Starter Kit Accessories Pack, it is also equipped with a 10.1inch HDMI display (1280×800 resolution, 10-point touch) and accessories, this kit can meet more application scenarios that require display function.

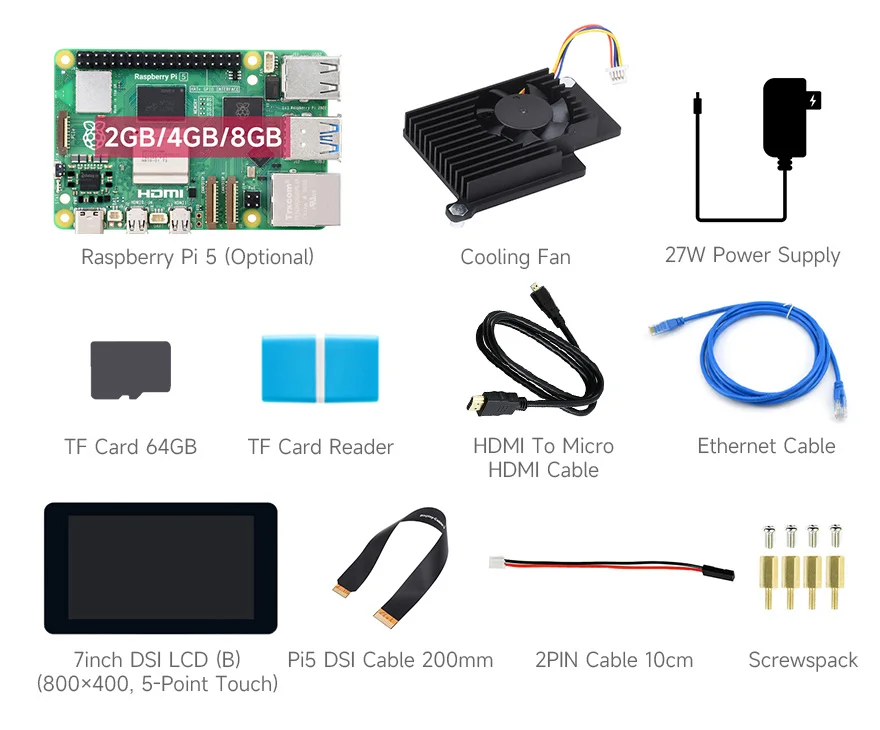

PI5 Display Kit B

This kit includes Raspberry Pi 5 4GB/8GB (optional), on the basis of the Starter Kit Accessories Pack, it is also equipped with a 7inch DSI display (800×480 resolution, 5-point touch) and accessories, this kit can meet more application scenarios that require display function.

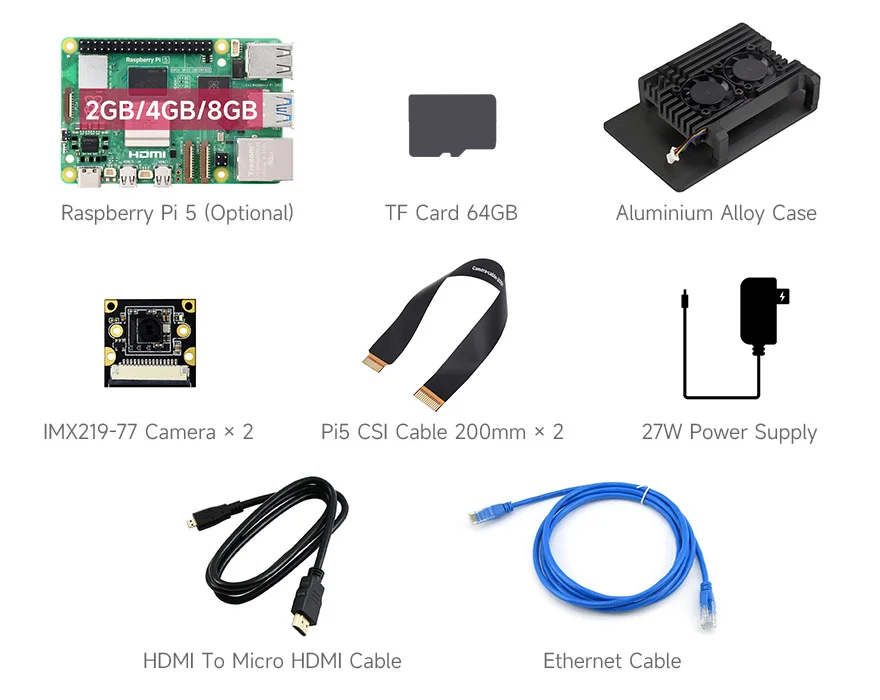

PI5 Dual-Camera Kit A

This kit includes Raspberry Pi 5 4GB/8GB (optional), equipped with 2× IMX219-77 Camera (79.3° FOV, 8MP, with CSI cable), 64GB TF card, Aluminium Alloy case, 27W power supply, HDMI to Micro HDMI cable and Ethernet cable, suitable for applications that require image capture.

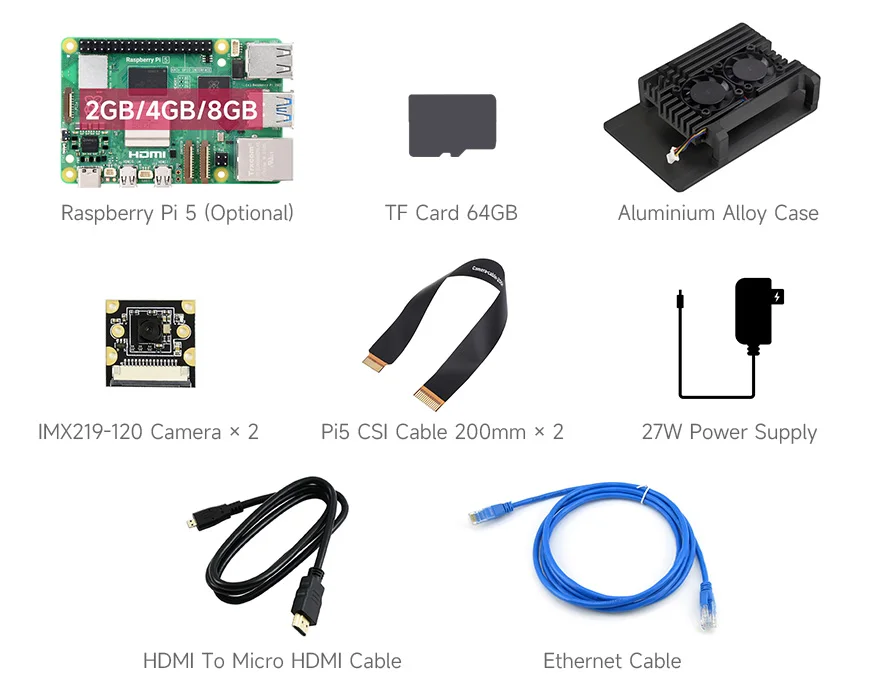

PI5 Dual-Camera Kit B

This kit includes Raspberry Pi 5 4GB/8GB (optional), equipped with 2× IMX219-120 Camera (120° FOV, 8MP, with CSI cable), 64GB TF card, Aluminium Alloy case, 27W power supply, HDMI to Micro HDMI cable and Ethernet cable, suitable for applications that require image capture.

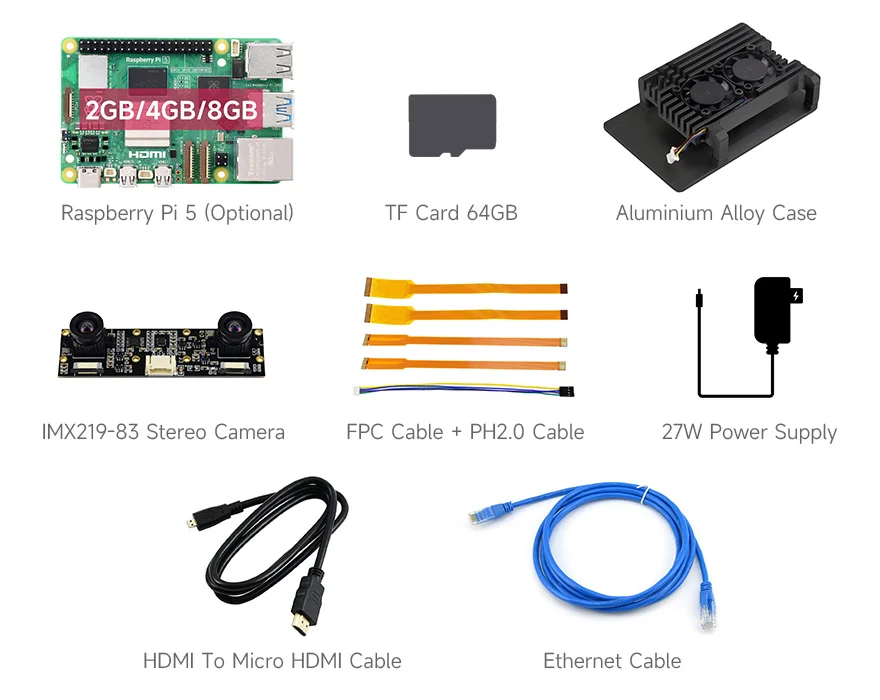

PI5 Dual-Camera Kit C

This kit includes Raspberry Pi 5 4GB/8GB (optional), equipped with IMX219-83 Binocular Camera (8MP, with FPC cables and PH2.0 cable), 64GB TF card, Aluminium Alloy case, 27W power supply, HDMI to Micro HDMI cable and Ethernet cable, suitable for applications such as depth vision and stereo vision.

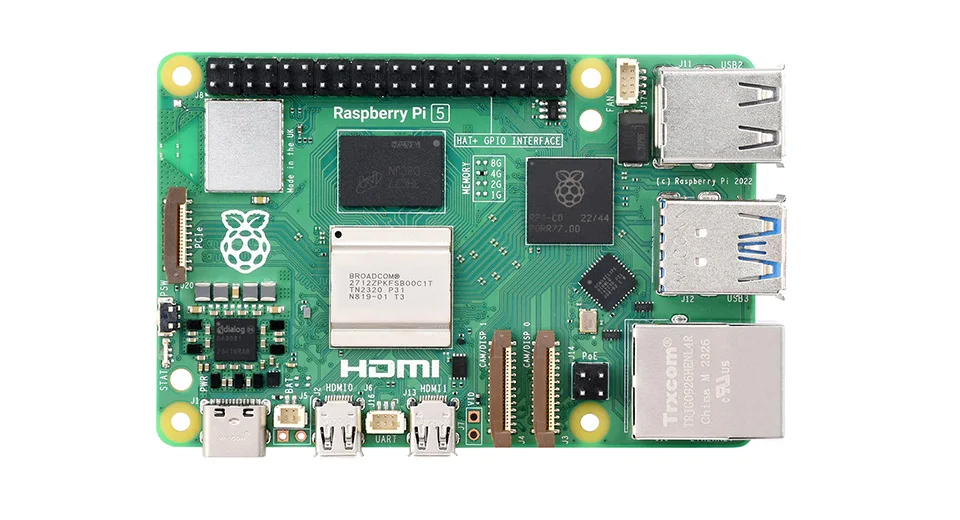

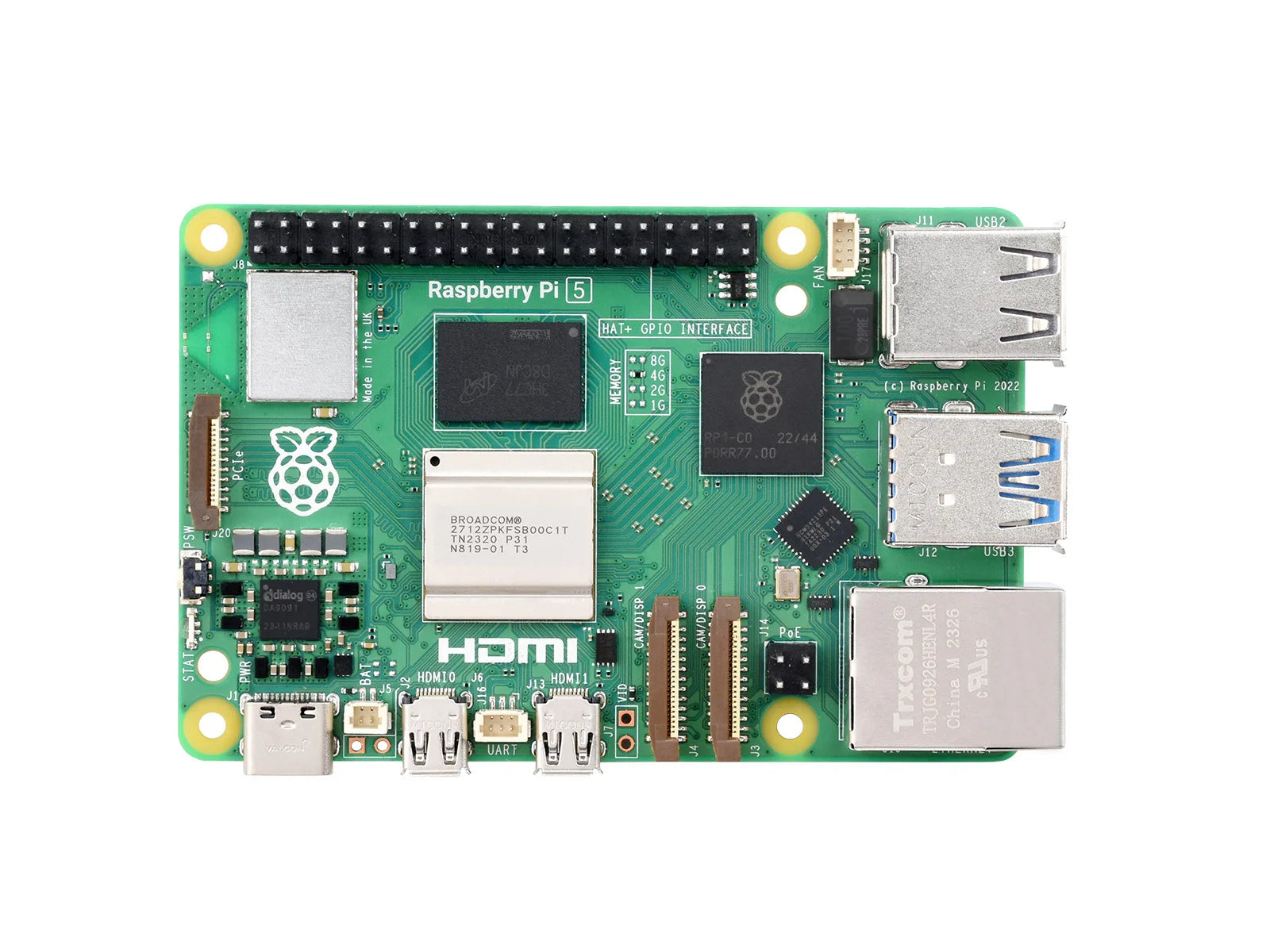

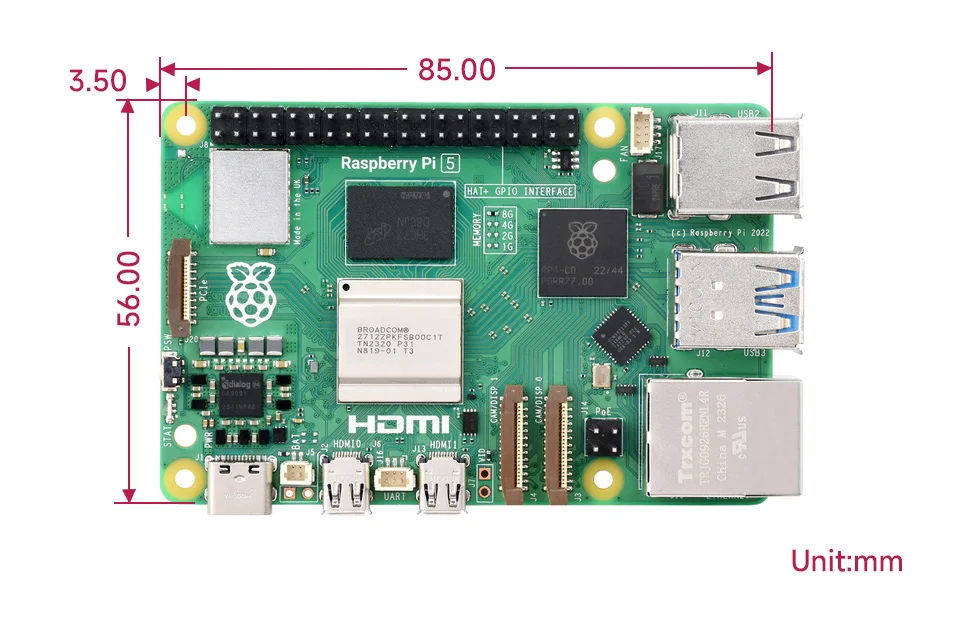

Board Specifications

Raspberry Pi 5 is the latest generation flagship product in the Raspberry Pi series, following the success of the Raspberry Pi 4. It provides a 2-3x increase in CPU performance over the previous generation. Onboard dual CSI/DSI ports and USB connectors which are provided by the Raspberry Pi RP1 I/O controller. And this is the first Raspberry Pi computer using silicon built in-house at Raspberry Pi.

Key features include:

2.4GHz quad-core 64-bit Arm Cortex-A76 CPU, 512KB per-core L2 caches and a 2MB shared L3 cache
VideoCore VII GPU @800MHz, supporting OpenGL ES 3.1, Vulkan 1.2
Dual 4Kp60 HDMI® display output
4Kp60 HEVC decoder
LPDDR4X-4267 SDRAM (options for 4GB/8GB)
2.4GHz/5GHz dual-band 802.11ac Wi-Fi®
Bluetooth 5.0 / Bluetooth Low Energy (BLE)
TF card slot, with support for high-speed SDR104 mode
2 × USB 3.0 ports, supporting simultaneous 5Gbps operation
Gigabit Ethernet, with PoE+ support (requires separate PoE+ HAT)

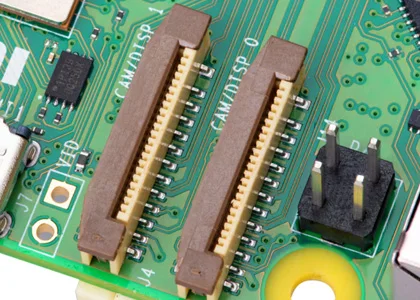

2 × 4-lane MIPI DSI/CSI port

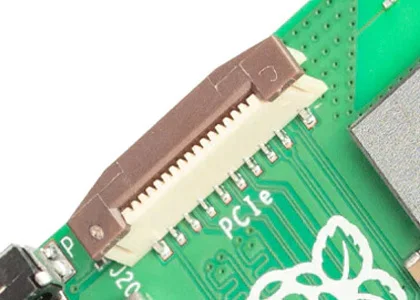

PCIe 2.0 x1 interface for fast peripherals (requires separate M.2 HAT or other adapter)
5V/5A DC power via USB-C, with Power Delivery support
Raspberry Pi standard 40-pin header

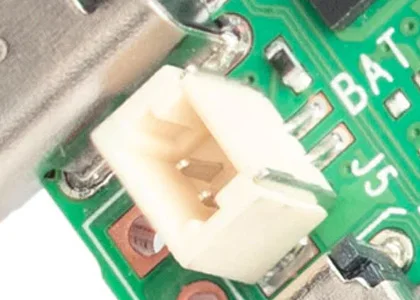

Real-time clock (RTC), powered from external battery (not included)

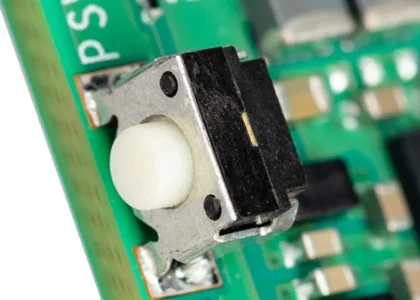

Onboard power button for power on/off without disconnecting power adapter

Raspberry Pi Version Comparison

MODULE	Raspberry Pi 4B	Raspberry Pi 5
CPU	Broadcom BCM2711, quad-core Cortex-A72 (ARM v8) 64-bit SoC, 1.8GHz frequency	Broadcom BCM2712, quad-core Cortex-A76 (ARM v8) 64-bit SoC, 2.4GHz frequency
RAM	Options for 2GB/4GB/8GB	Options for 4GB/8GB
INTERFACES	2.4GHz and 5.0GHz 802.11a dual-band WiFi	2.4GHz and 5.0GHz 802.11a dual-band WiFi
	Bluetooth 5.0, BLE	Bluetooth 5.0, BLE
	Gigabit Ethernet	Gigabit Ethernet
	N/A	1 × PCle 2.0 interface
	2 × USB 3.0, 2 × USB 2.0	2 × USB 3.0, supporting simultaneous 5Gbps operation 2 × USB 2.0
	Raspberry Pi standard 40PIN GPIO header	Raspberry Pi standard 40PIN GPIO header
	2 × micro HDMI interface (up to 4Kp60)	2 × micro HDMI interface (up to 4Kp60)
	2-lane MIPI DSI, 2-lane MIPI CSI	2 × 4-lane MIPI (DSI/CSI)
	4-pole stereo audio and composite video port	N/A
OPERATING SYSTEM & DATA STORAGE	TF card slot	TF card slot, with support for high-speed SDR104 mode
POWER INPUT	5V/3A DC (power via USB-C/GPIO)	5V/5A DC (power via USB-C, support PD)
POE	requires separate PoE+ HAT	requires separate new PoE+ HAT
RTC	N/A	Onboard RTC and RTC battery connector

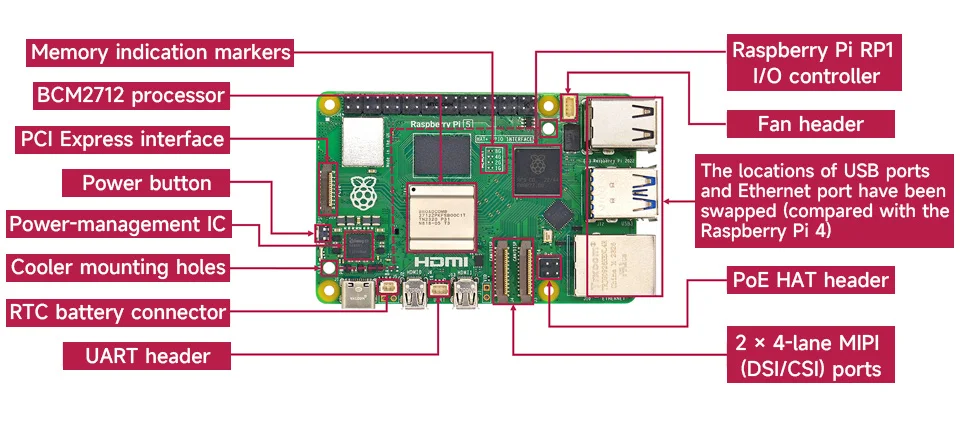

What's On Board

New Chipset

Three New Chips Designed For Raspberry Pi 5 Deliver A Step Change In Performance

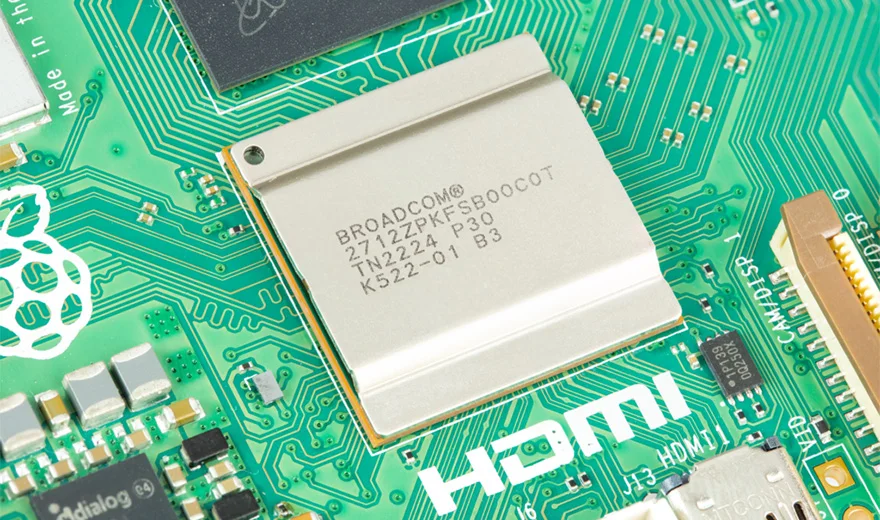

BCM2712 is a new quad-core 64-bit Arm Cortex-A76 processor from Broadcom, clocked at 2.4GHz, with 512KB per-core L2 caches, and a 2MB shared L3 cache. Cortex-A76 is three microarchitectural generations beyond Cortex-A72, a better manufacturing process makes a faster Raspberry Pi 5 with lower power consumption.

An updated VideoCore hardware video scaler (HVS) is capable of driving two simultaneous 4Kp60 HDMI displays, up from single 4Kp60 or dual 4Kp30 on Raspberry Pi 4.

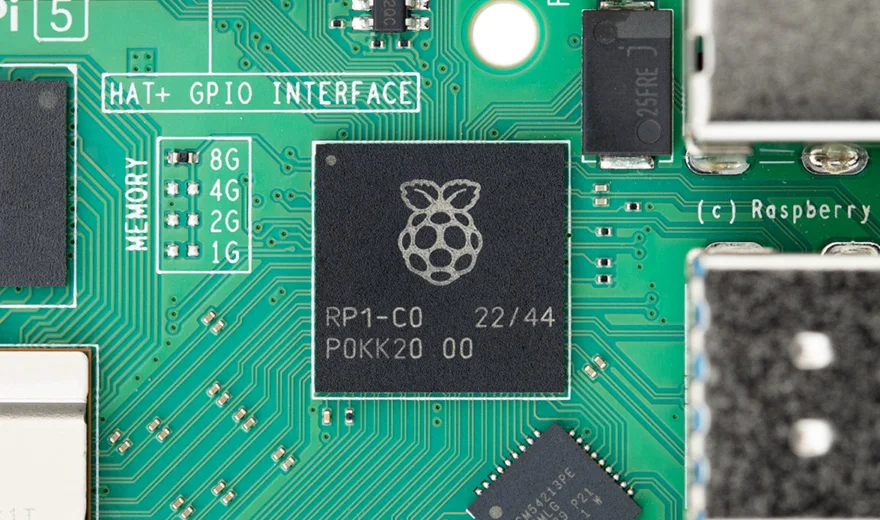

RP1 is the I/O controller designed for Raspberry Pi 5, provides two USB 3.0 and two USB 2.0 interfaces; a Gigabit Ethernet controller; two four-lane MIPI transceivers for camera and display; analogue video output; 3.3V general-purpose I/O (GPIO); and the usual collection of GPIO-multiplexed low-speed interfaces (UART, SPI, I2C, I2S, and PWM). A four-lane PCI Express 2.0 interface provides a 16Gb/s link back to BCM2712.

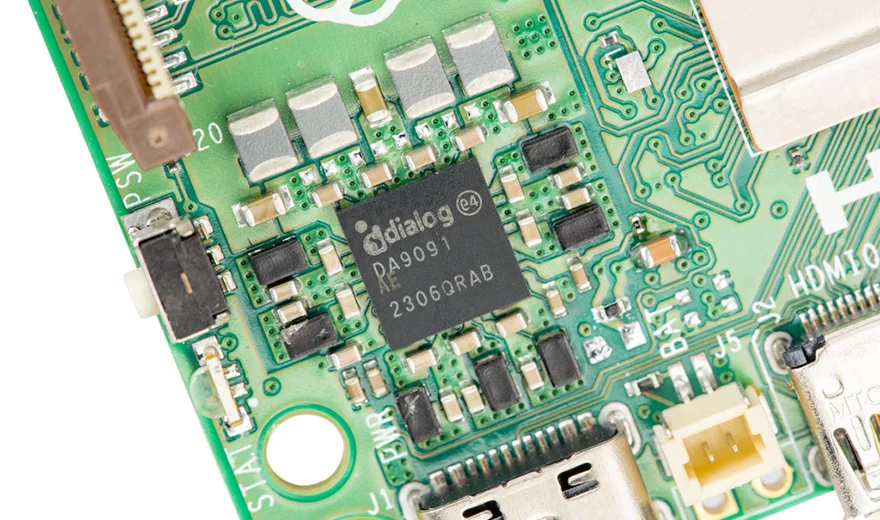

DA9091 is a power-management IC (PMIC) of the chipset. This integrates eight separate switch-mode power supplies to generate the various voltages required by the board, including a quad-phase core supply, capable of providing 20 amps of current to power the Cortex-A76 cores and other digital logic in BCM2712.

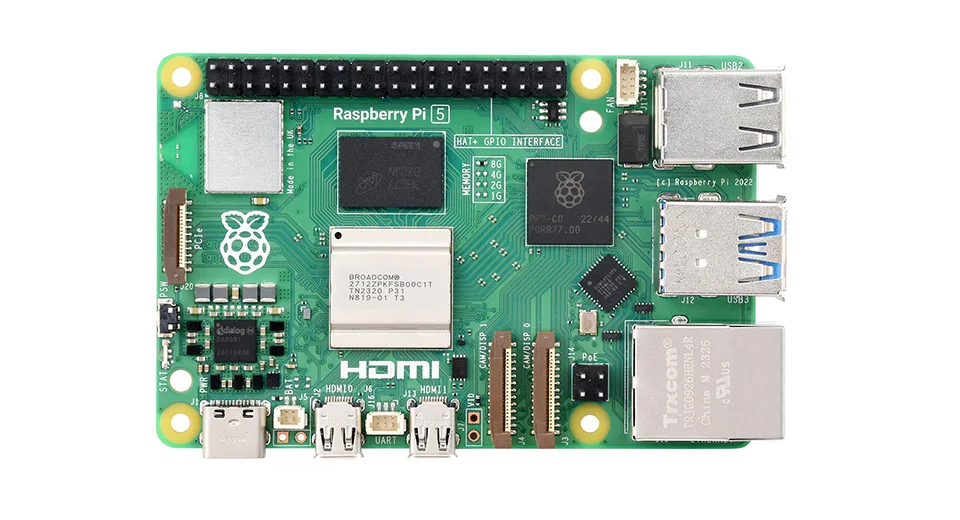

Updated Layout
