JSN-SR04T Waterproof Ultrasonic Distance Sensor (20cm - 450cm)
Rugged Precision for Harsh Environments
Take your distance sensing projects outdoors or into wet conditions with the JSN-SR04T. This professional-grade module features a fully sealed, waterproof probe that is designed to withstand water, dust, and dirt. It’s the perfect upgrade for any project where a standard sensor would fail—from monitoring water tank levels to building weather-resistant parking assistants.
Take your distance sensing projects outdoors or into wet conditions with the JSN-SR04T. This professional-grade module features a fully sealed, waterproof probe that is designed to withstand water, dust, and dirt. It’s the perfect upgrade for any project where a standard sensor would fail—from monitoring water tank levels to building weather-resistant parking assistants.
Smart Design, Reliable Results

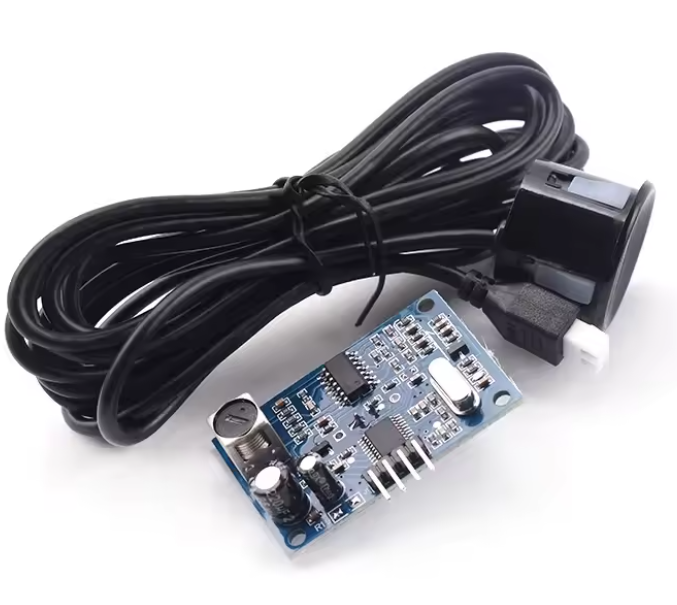

The sensor comes in two parts: a high-quality integrated ultrasonic transducer and a compact control board. Connected by a 2.5-meter shielded cable, this setup allows for flexible mounting, keeping your sensitive microcontroller electronics safe and dry while the probe does the heavy lifting in the field.
The sensor comes in two parts: a high-quality integrated ultrasonic transducer and a compact control board. Connected by a 2.5-meter shielded cable, this setup allows for flexible mounting, keeping your sensitive microcontroller electronics safe and dry while the probe does the heavy lifting in the field.
Key Features:
- Fully Waterproof Probe: The IP66-rated sensor head can be used in high-humidity or splash-prone areas.
- Long-Range Detection: Accurately measures distances from 20cm up to 450cm (4.5 meters).
- Strong Anti-Interference: Industrial-grade components ensure stable readings even in electrically noisy environments.
- Arduino & Raspberry Pi Compatible: Uses the same trigger/echo logic as the common HC-SR04, making it a drop-in replacement for existing code.
Technical Specifications:
- Operating Voltage: DC 5V
- Static Current: < 5mA
- Operating Current: 30mA
- Acoustic Emission Frequency: 40kHz
- Blind Zone: 20cm (Minimum distance for accurate reading)
- Cable Length: 2.5 Meters
Ideal For:
- Liquid Level Sensing: Monitor water tanks, wells, or sumps.
- Outdoor Robotics: Build all-terrain obstacle avoidance systems.
- Smart Parking: Create weather-resistant reversing radars or garage parking guides.
- Industrial Automation: Monitor material levels in hoppers or bins.
